010501400 | Kabeltronik
PVC control line LiYY 5 x 0.14 mm², unshielded, gray, 010501400
Unit Price (€ / mtr.)
1.2852 € *
Available: 0 mtr.
Available in 7 Days: 7,760 mtr.
Leadtime: 1 Week **
Total Price:
1.29 € *
Price list
Quantity
Price per unit*
1 mtr.
1.2852 €
10 mtr.
1.0829 €
100 mtr.
0.9877 €
500 mtr.
0.8925 €
1000 mtr.
0.7854 €
*incl. VAT plus shipping costs
**Subject to prior sale

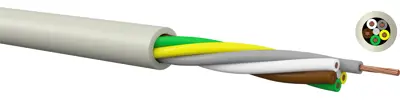

PVC control cable, 010501400, Kabeltronik
High flexibility and small outside diameter characterise this cable. Suitable for measuring-, signal, control-, and regulation technology as well as call plants and data processing.
Technical specifications
| Core insulation material | PVC | |
| Core colour sequence | DIN 47100 | |
| Number of cores | 5 | |
| Version | Steuerleitung | |
| Outer diameter | 4.2 mm | |
| Colour | grau | |
| Halogen free | No | |
| Cable material | Kupfer, blank | |
| Cable cross-section | 0,14 mm² | |
| Material | PVC | |
| Rated voltage | 500 V | |
| Test voltage | 1.2 kV | |
| Shielding | ungeschirmt | |
| Temperature range (active) | -5 °C bis 70 °C | |
| Temperature range (unmoved) | -30 °C bis 70 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444995 |
| Original Packaging | Ring mit 100 Meter |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
