216082600 | Kabeltronik

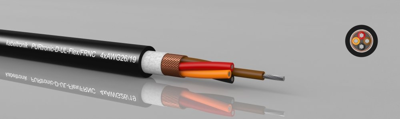

PUR control line PURtronic-D-UL-Flex FRNC 19-wire, AWG 26, shielded, black, 216082600
Unit Price (€ / mtr.)
3.9865 € *
Available: 0 mtr.
Available in 7 Days: 300 mtr.
Leadtime: 1 Week **
Total Price:
3.99 € *
Price list
Quantity
Price per unit*
100 mtr.
3.9865 €
500 mtr.
3.6533 €
*incl. VAT plus shipping costs
**Subject to prior sale
Control cable, 216082600, KABELTRONIK
Flexible, shielded UL-controlcable with UV-resistent PUR outer jacket. For measuring-, signal, control-, and regulation technology for indoor and outdoor using. High flexibility as well as mechanical and chemical resistance.
FEATURES
- UV resistant
- High flexibility
- Chemical resistance
- Halogen-free
Technical Data
- Color: black
- AWG cross-sectionAWG 26
- Material: PUR
- Conductor category: Cl.5 = fine-stranded
Technical specifications
| Aderisolationsmaterial | PUR | |
| Anzahl der Adern | 19 | |
| Ausführung | Steuerleitung | |
| Außendurchmesser | 6.3 mm | |
| AWG-Leiterquerschnitt | AWG 26 | |
| Farbe | schwarz | |
| Halogenfrei | Yes | |
| Leiterklasse | Kl.5 = feindrähtig | |
| Leitermaterial | Kupfer, blank | |
| Material | PUR | |
| Nennspannung | 600 V | |
| Prüfspannung | 6 kV | |
| Schirmung | geschirmt | |
| Temperaturbereich (bewegt) | -20 °C bis 80 °C | |
| Temperaturbereich (unbewegt) | -40 °C bis 80 °C |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85444995 |
| Originalverpackung | Ring mit 100 Meter |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
