240805000 | Kabeltronik
PVC control line LifYY 8 x 0.5 mm², unshielded, black, 240805000
Unit Price (€ / mtr.)
5.9738 € *
Available: 108 mtr.
Available in 7 Days: 4,303 mtr.
Leadtime: 1 Week **
Total Price:
5.97 € *
Price list
Quantity
Price per unit*
1 mtr.
5.9738 €
10 mtr.
5.0932 €
100 mtr.
4.4268 €
500 mtr.
4.0936 €
1000 mtr.
3.7604 €
*incl. VAT plus shipping costs
**Subject to prior sale

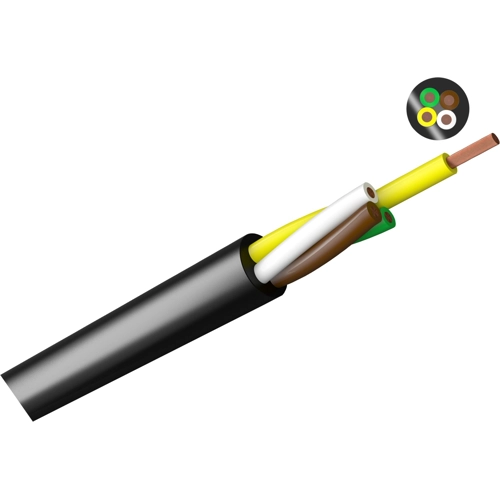

Ultra-flexible PVC control cables, non-shielded, type LifYY.
For highest demands in terms of flexibility and bending stress
Cross-section 0.5 mm².
Technical specifications
| Core insulation material | PVC | |
| Core colour sequence | DIN 47100 | |
| Number of cores | 8 | |
| Version | control line | |
| Outer diameter | 8 mm | |
| Colour | black | |
| Halogen free | No | |
| Conductor category | CL.6 = finest stranded | |
| Cable material | copper, bright | |
| Cable cross-section | 0.5 mm² | |
| Material | PVC | |
| Rated voltage | 900 V | |
| Test voltage | 2.5 kV | |
| Shielding | unshielded | |
| Temperature range (active) | -5 °C to 70 °C | |
| Temperature range (unmoved) | -20 °C to 70 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444995 |
| Original Packaging | Ring with 100 meters |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
