242030800 | Kabeltronik
PUR control line Sensocord-M-UL 3 x 0.09 mm², AWG 28, unshielded, black, 242030800
Unit Price (€ / mtr.)
2.4633 € *
Available: 113 mtr.
Available in 7 Days: 3,191 mtr.
Leadtime: 1 Week **
Total Price:
2.46 € *
Price list
Quantity
Price per unit*
1 mtr.
2.4633 €
10 mtr.
2.1658 €
100 mtr.
1.9397 €
500 mtr.
1.7850 €
1000 mtr.
1.5589 €
*incl. VAT plus shipping costs
**Subject to prior sale

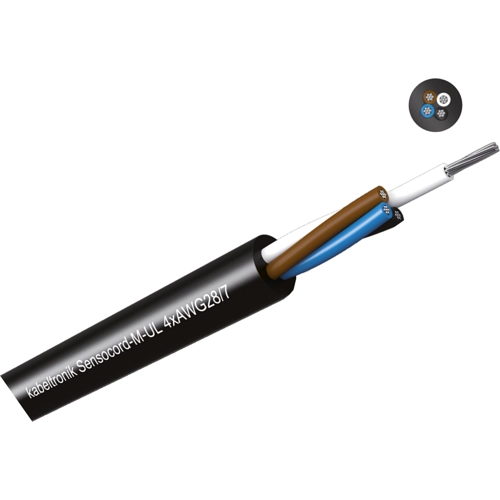

Miniature sensor cables, non-shielded, type Kabeltronik Sensocord-M-UL.
Suitable for drag chains and other industrial applications, high mechanical strength, UV-resistant, resistant against many oil and grease products, flame retardant to IEC 60332-1-2. Tinned stranded copper wires (7 x 0.127 mm, AWG 28/7)
Technical specifications
| Aderisolationsmaterial | PP | |
| Anzahl der Adern | 3 | |
| Ausführung | Steuerleitung | |
| Außendurchmesser | 2.3 mm | |
| AWG-Leiterquerschnitt | AWG 28 | |
| Farbe | schwarz | |
| Halogenfrei | Yes | |
| Leitermaterial | Kupfer, verzinnt | |
| Leiterquerschnitt | 0,09 mm² | |
| Material | PUR | |
| Nennspannung | 300 V | |
| Prüfspannung | 3 kV | |
| Schirmung | ungeschirmt | |
| Temperaturbereich (bewegt) | -10 °C bis 80 °C | |
| Temperaturbereich (unbewegt) | -30 °C bis 80 °C |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85444995 |
| Originalverpackung | Ring mit 100 Meter |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
