330401400 | Kabeltronik
PVC data cable, 4-wire, 0.14 mm², gray, 330401400
Unit Price (€ / mtr.)
1.8207 € *
Available: 0 mtr.
Available in 7 Days: 2,695 mtr.
Leadtime: 1 Week **
Total Price:
1.82 € *
Price list
Quantity
Price per unit*
100 mtr.
1.8207 €
500 mtr.
1.6898 €
1000 mtr.
1.5470 €
*incl. VAT plus shipping costs
**Subject to prior sale

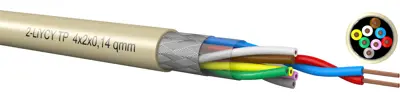

Data cable, 330401400, Kabeltronik
Measuring-, signal-, and control-technology as well as for EDP periphery, in dry, moistly and wetly rooms. For permanent outside using not suitable. The pair twisting optimizes crosstalk attenuation and prevents electrical couplings within the line to a large extend. Increased interference protection as well as increased mechanical maximum stress by copper braid.
Technical specifications
| Core insulation material | PVC | |
| Number of cores | 4 | |
| Version | data cable | |
| Outer diameter | 5.4 mm | |
| Colour | gray | |
| Halogen free | No | |
| Cable material | copper, bright | |
| Cable cross-section | 0.14 mm² | |
| Material | PVC | |
| Shielding | shielded | |
| Temperature range (active) | -5 °C to 70 °C | |
| Temperature range (unmoved) | -30 °C to 70 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444995 |
| Original Packaging | Ring with 100 meters |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
