511826709 | Kabeltronik

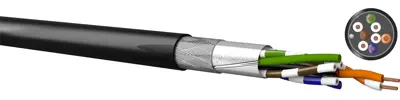

PUR data cable, Cat 5e, LAN, 8-wire, AWG 26-7, black, 511826709
Unit Price (€ / mtr.)
3.7485 € *
Available: 0 mtr.
Available in 7 Days: 7,264 mtr.
Leadtime: 1 Week **
Data cable, 511826709, Kabeltronik
Data cable for local area networks (LAN) up to 150 MHz. By using a flexible stranded wire conductor as well as an outer PUR jacket, the cable is applicable for mobile and outdoor using also under rough conditions. This cable is resistant against UV-radiation and a lot of oils.
Technical specifications
| Core insulation material | PE | |
| Number of cores | 8 | |
| Version | Datenkabel | |
| Outer diameter | 5.9 mm | |
| AWG cross-section | AWG 26-7 | |
| Bussystem | LAN | |
| Colour | schwarz | |
| Halogen free | Yes | |
| Category | Cat 5e | |
| Cable material | Kupfer, blank | |
| Material | PUR | |
| Shielding | ungeschirmt | |
| Temperature range (active) | -15 °C bis 70 °C | |
| Temperature range (unmoved) | -25 °C bis 70 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444995 |
| Original Packaging | Ring mit 100 Meter |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
