060101402 | Kabeltronik

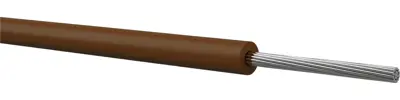

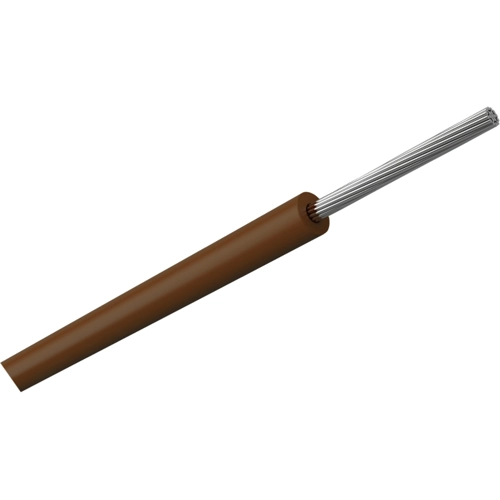

PVC-switching strand, LiYv, 0.14 mm², brown, outer Ø 1.1 mm, 060101402
Unit Price (€ / mtr.)
0.2856 € *
Available: 0 mtr.
Next delivery: 100 mtr. on 2025-04-22
Available in 7 Days: 6,795 mtr.
Leadtime: 1 Week **
Total Price:
28.56 € *
Price list
Quantity
Price per unit*
100 mtr.
0.2856 €
500 mtr.
0.2499 €
1000 mtr.
0.2142 €
*incl. VAT plus shipping costs
**Subject to prior sale
Stranded wire, 060101402, Kabeltronik
Flexible, PVC-insulated stranded wire for wiring device assemblies and racks, as well as for telecommunications equipment and low-current systems. Not approved for heavy current applications outside of equipment.
Technical specifications
| Core insulation material | PVC | |
| Outer diameter | 1.1 mm | |
| Colour | braun | |
| Halogen free | No | |
| Cable structure | 18 x 0,1 mm | |
| Cable material | Kupfer, verzinnt | |
| Cable cross-section | 0,14 mm² | |
| Rated voltage | 500 V | |
| Test voltage | 1.2 kV | |
| Temperature range (active) | -5 °C bis 70 °C | |
| Temperature range (unmoved) | -30 °C bis 70 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444995 |
| Original Packaging | Rolle mit 100 Meter |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
