060115008 | Kabeltronik

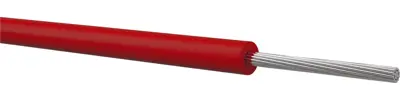

PVC-switching strand, LiYv, 1.5 mm², red, outer Ø 2.6 mm, 060115008
Unit Price (€ / mtr.)
0.9758 € *
Available: 0 mtr.
Available in 7 Days: 12,340 mtr.
Leadtime: 1 Week **
Total Price:
0.98 € *
Price list
Quantity
Price per unit*
100 mtr.
0.9758 €
500 mtr.
0.8330 €
1000 mtr.
0.6902 €
*incl. VAT plus shipping costs
**Subject to prior sale
Stranded wire, 060115008, Kabeltronik
Flexible, PVC-insulated stranded wire for wiring device assemblies and racks, as well as for telecommunications equipment and low-current systems. Not approved for heavy current applications outside of equipment.
Technical specifications
| Aderisolationsmaterial | PVC | |
| Außendurchmesser | 2.6 mm | |
| Farbe | rot | |
| Halogenfrei | No | |
| Leiteraufbau | 30 x 0,25 mm | |
| Leitermaterial | Kupfer, verzinnt | |
| Leiterquerschnitt | 1,5 mm² | |
| Nennspannung | 900 V | |
| Prüfspannung | 2.5 kV | |
| Temperaturbereich (bewegt) | -5 °C bis 70 °C | |
| Temperaturbereich (unbewegt) | -30 °C bis 70 °C |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85444995 |
| Originalverpackung | Ring mit 100 Meter |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
