089200701 | Kabeltronik

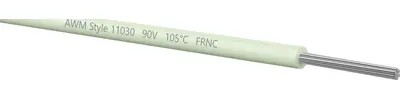

MPPE-switching strand, halogen free, UL-Style 11030, 0.56 mm², AWG 20/7, white, outer Ø 1.27 mm, 089200701
Unit Price (€ / mtr.)
0.5355 € *
Available: 0 mtr.
Available in 7 Days: 1,900 mtr.
Leadtime: 1 Week **
Stranded wire, 089200701, Kabeltronik
UL/cUL stranded wire in halogen free and flame retardant construction. The mPPE-material allows very small outer diameters and doesn't contain softeners. Therefore it´s an environment friendly replacement for PVC stranded wire. Stranded wire according to UL is primarily used for the internal wiring in electrical equipment as well as electrical control boxes and is steady to a large extent against acids, caustic solutions and many oils.
Features
- Trend-setting, because environment friendly and recyclable
- Small dielectric constant permits substantially smaller outside diameters, thereby weight saving
- Higher electrical strength
- Larger insulation resistance
- FRNC (LSZH), flame retardant, zero halogen, low flue gas, non-corrosive
Technical specifications
| Core insulation material | mPPE | |
| Outer diameter | 1.27 mm | |
| AWG cross-section | AWG 20/7 | |
| Colour | weiß | |
| Halogen free | Yes | |
| Cable structure | 7 x 0,320 mm | |
| Cable material | Kupfer, verzinnt | |
| Cable cross-section | 0,56 mm² | |
| Material | LSZH | |
| Rated voltage | 90 V | |
| Standard number | UL, cUL | |
| Test voltage | 1 kV | |
| Temperature range (active) | -25 °C bis 105 °C | |
| Temperature range (unmoved) | -40 °C bis 105 °C | |
| Bending radius moved | 15 mm | |
| Bending radius unmoved | 10 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444995 |
| Original Packaging | Rolle mit 100 Meter |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
