091267001 | Kabeltronik

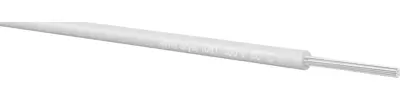

PVC-switching strand, UL-Style 1061/10002, 0.14 mm², AWG 26, white, outer Ø 1.05 mm, 091267001
Unit Price (€ / mtr.)
0.2023 € *
Available: 0 mtr.
Available in 7 Days: 14,000 mtr.
Leadtime: 1 Week **
PVC stranded wire, 091267001, Kabeltronik
The 091267001 stranded wire is primarily used for the internal wiring in electrical equipment as well as electrical control boxes. Semi-Rigid-PVC as insulation material is to a large extent steady against acids, caustic solutions and many oils. This Style is, due to its structure of the conductor and insulation material suitable for insulation displacement connectors (IDC).
Technical specifications
| Aderisolationsmaterial | PVC | |
| Außendurchmesser | 1.05 mm | |
| AWG-Leiterquerschnitt | AWG 26 | |
| Farbe | weiß | |
| Halogenfrei | No | |
| Leiteraufbau | 7 x 0,16 mm | |
| Leitermaterial | Kupfer, verzinnt | |
| Leiterquerschnitt | 0,14 mm² | |
| Nennspannung | 300 V | |
| Prüfspannung | 1.5 kV | |
| Temperaturbereich (bewegt) | -5 °C bis 105 °C | |
| Temperaturbereich (unbewegt) | -30 °C bis 105 °C |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85444995 |
| Originalverpackung | Rolle mit 500 Meter |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
