091287001 | Kabeltronik

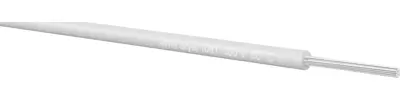

PVC-switching strand, UL-Style 1061/10002, 0.09 mm², AWG 28, white, outer Ø 0.9 mm, 091287001
Unit Price (€ / mtr.)
0.1904 € *
Available: 0 mtr.
Leadtime: On Request **
PVC stranded wire, 091287001, Kabeltronik
The 091287001 stranded wire is primarily used for the internal wiring in electrical equipment as well as electrical control boxes. Semi-Rigid-PVC as insulation material is to a large extent steady against acids, caustic solutions and many oils. This Style is, due to its structure of the conductor and insulation material suitable for insulation displacement connectors (IDC).
Technical specifications
| Core insulation material | PVC | |
| Outer diameter | 0.9 mm | |
| AWG cross-section | AWG 28 | |
| Colour | white | |
| Halogen free | No | |
| Cable structure | 7 x 0.127 mm | |
| Cable material | copper, tin-plated | |
| Cable cross-section | 0.09 mm² | |
| Rated voltage | 300 V | |
| Test voltage | 1.5 kV | |
| Temperature range (active) | -5 °C to 105 °C | |
| Temperature range (unmoved) | -30 °C to 105 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444995 |
| Original Packaging | Reel with 500 meters |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
