092182807 | Kabeltronik

PVC-switching strand, UL-Style 1007/1569, 0.88 mm², AWG 18, blue, outer Ø 2.15 mm, 092182807

Order No.: 92F7105
EAN: 4099891961732
MPN:
092182807
092182807 Kabeltronik Insulated stranded wires
Image may differ
Unit Price (€ / mtr.)
0.6783 € *
Available: 250 mtr.
Available in 7 Days: 9,080 mtr.
Leadtime: 1 Week **
Total Price:
169.58 € *
*incl. VAT plus shipping costs
**Subject to prior sale
250 mtr.
0.6783 €

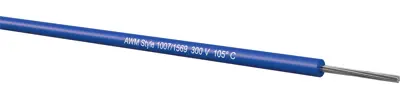

PVC stranded wire, 092182807, Kabeltronik

The 092182807 stranded wire is primarily used for the internal wiring in electrical equipment as well as electrical control boxes. Special PVC insulation is to a large extent steady against acids, caustic solutions and many oils.

Technical specifications
Aderisolationsmaterial PVC
Außendurchmesser 2.15 mm
AWG-Leiterquerschnitt AWG 18
Farbe blau
Halogenfrei No
Leiteraufbau 28 x 0,2 mm
Leitermaterial Kupfer, verzinnt
Leiterquerschnitt 0,88 mm²
Nennspannung 300 V
Prüfspannung 3 kV
Temperaturbereich (bewegt) -5 °C bis 105 °C
Temperaturbereich (unbewegt) -30 °C bis 105 °C
Logistics
Ursprungsland DE
Zolltarifnummer 85444995
Originalverpackung Rolle mit 250 Meter
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
