092182828 | Kabeltronik

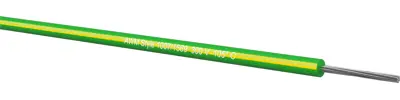

PVC-switching strand, UL-Style 1007/1569, 0.88 mm², AWG 18, green/yellow, outer Ø 2.15 mm, 092182828
Unit Price (€ / mtr.)
0.6783 € *
Available: 250 mtr.
Available in 7 Days: 5,465 mtr.
Leadtime: 1 Week **
PVC stranded wire, 092182828, Kabeltronik
The 092182828 stranded wire is primarily used for the internal wiring in electrical equipment as well as electrical control boxes. Special PVC insulation is to a large extent steady against acids, caustic solutions and many oils.
Technical specifications
| Core insulation material | PVC | |
| Outer diameter | 2.15 mm | |
| AWG cross-section | AWG 18 | |
| Colour | grün/gelb | |
| Halogen free | No | |
| Cable structure | 28 x 0,2 mm | |
| Cable material | Kupfer, verzinnt | |
| Cable cross-section | 0,88 mm² | |
| Rated voltage | 300 V | |
| Test voltage | 3 kV | |
| Temperature range (active) | -5 °C bis 105 °C | |
| Temperature range (unmoved) | -30 °C bis 105 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444995 |
| Original Packaging | Rolle mit 250 Meter |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
