092267010 | Kabeltronik

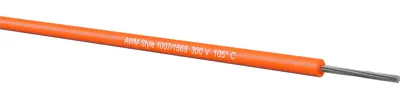

PVC-switching strand, UL-Style 1007/1569, 0.14 mm², AWG 26, orange, outer Ø 1.3 mm, 092267010
Unit Price (€ / mtr.)
0.2404 € *
Available: 0 mtr.
Leadtime: 1 Week **
PVC stranded wire, 092267010, Kabeltronik
The 092267010 stranded wire is primarily used for the internal wiring in electrical equipment as well as electrical control boxes. Special PVC insulation is to a large extent steady against acids, caustic solutions and many oils.
Technical specifications
| Core insulation material | PVC | |
| Outer diameter | 1.3 mm | |
| AWG cross-section | AWG 26 | |
| Colour | orange | |
| Halogen free | No | |
| Cable structure | 7 x 0.16 mm | |
| Cable material | copper, tin-plated | |
| Cable cross-section | 0.14 mm² | |
| Rated voltage | 300 V | |
| Test voltage | 3 kV | |
| Temperature range (active) | -5 °C to 105 °C | |
| Temperature range (unmoved) | -30 °C to 105 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444995 |
| Original Packaging | Reel with 500 meters |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
