098240701 | Kabeltronik

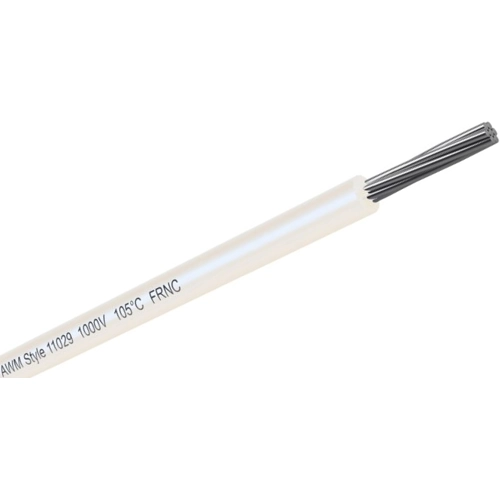

MPPE-switching strand, halogen free, UL-Style 11029, 0.22 mm², AWG 24/7, white, outer Ø 1.3 mm, 098240701
Unit Price (€ / mtr.)
0.5236 € *
Available: 0 mtr.
Available in 7 Days: 10,750 mtr.
Leadtime: 1 Week **
Stranded wire, 098240701, Kabeltronik
This UL/cUL stranded wire in halogen free and flame retardant construction. The mPPEmaterial allows very small outer diameters and don´t contain softeners. Therefore it´s an environment friendly replacement for PVC stranded wires. Stranded wires acc. to UL are primarily used for the internal wiring in electrical equipment as well as electrical control boxes and are steady to a large extent against acids, caustic solutions and many oils.
Features
- Trend-setting, because environment friendly and recyclable (non-interlaced thermoplastic)
- Small dielectric constant permits substantially smaller outside diameters, thereby weight saving
- Higher electrical strength
- Larger insulation resistance
Technical specifications
| Aderisolationsmaterial | mPPE | |
| Außendurchmesser | 1.3 mm | |
| AWG-Leiterquerschnitt | AWG 24/7 | |
| Farbe | weiß | |
| Halogenfrei | Yes | |
| Leiteraufbau | 7 x 0,2 mm | |
| Leitermaterial | Kupfer, verzinnt | |
| Leiterquerschnitt | 0,22 mm² | |
| Material | LSZH | |
| Nennspannung | 1000 V | |
| Norm | UL, cUL | |
| Prüfspannung | 10 kV | |
| Temperaturbereich (bewegt) | -20 °C bis 105 °C | |
| Temperaturbereich (unbewegt) | -40 °C bis 105 °C |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85444995 |
| Originalverpackung | Rolle mit 250 Meter |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
