160105001 | Kabeltronik

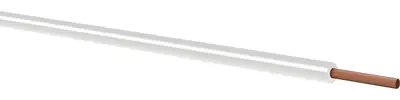

PVC-switching strand, LifY, 0.5 mm², white, outer Ø 2 mm, 160105001
Unit Price (€ / mtr.)
0.9758 € *
Available: 0 mtr.
Leadtime: 1 Week **
Total Price:
0.98 € *
Price list
Quantity
Price per unit*
1 mtr.
0.9758 €
10 mtr.
0.9044 €
100 mtr.
0.8211 €
1000 mtr.
0.7140 €
2500 mtr.
0.5950 €
*incl. VAT plus shipping costs
**Subject to prior sale
PVC stranded wire, 160105001, Kabeltronik
General wiring technology in the electronics field, as well as measuring line, where high flexibility is demanded.
Technical specifications
| Core insulation material | PVC | |
| Outer diameter | 2 mm | |
| Colour | white | |
| Halogen free | No | |
| Cable structure | 256 x 0.05 mm | |
| Conductor category | CL.6 = finest stranded | |
| Cable material | copper, bright | |
| Cable cross-section | 0.5 mm² | |
| Rated voltage | 900 V | |
| Standard number | VDE 0207 | |
| Test voltage | 2.5 kV | |
| Temperature range (active) | -5 °C to 70 °C | |
| Temperature range (unmoved) | -30 °C to 70 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444995 |
| Original Packaging | Reel with 100 meters |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
