160107503 | Kabeltronik

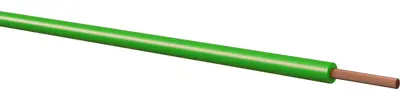

PVC-switching strand, LifY, 0.75 mm², green, outer Ø 2.2 mm, 160107503
Unit Price (€ / mtr.)
1.2971 € *
Available: 0 mtr.
Leadtime: 1 Week **
Total Price:
1.30 € *
Price list
Quantity
Price per unit*
1 mtr.
1.2971 €
10 mtr.
1.1900 €
100 mtr.
1.0829 €
1000 mtr.
0.9401 €
2500 mtr.
0.7973 €
*incl. VAT plus shipping costs
**Subject to prior sale
PVC stranded wire, 160107503, Kabeltronik
General wiring technology in the electronics field, as well as measuring line, where high flexibility is demanded.
Technical specifications
| Core insulation material | PVC | |
| Outer diameter | 2.2 mm | |
| Colour | green | |
| Halogen free | No | |
| Cable structure | 384 x 0.05 mm | |
| Conductor category | CL.6 = finest stranded | |
| Cable material | copper, bright | |
| Cable cross-section | 0.75 mm² | |
| Rated voltage | 900 V | |
| Standard number | VDE 0207 | |
| Test voltage | 2.5 kV | |
| Temperature range (active) | -5 °C to 70 °C | |
| Temperature range (unmoved) | -30 °C to 70 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444995 |
| Original Packaging | Reel with 100 meters |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
