160107505 | Kabeltronik

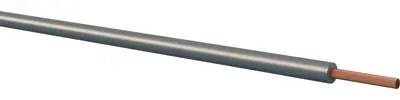

PVC-stranded wire, highly flexible, LifY, 0.75 mm², gray, outer Ø 2.2 mm, 160107505
Unit Price (€ / mtr.)
1.2971 € *
Available: 0 mtr.
Available in 7 Days: 7,370 mtr.
Leadtime: 1 Week **
Total Price:
1.30 € *
Price list
Quantity
Price per unit*
1 mtr.
1.2971 €
10 mtr.
1.1900 €
100 mtr.
1.0829 €
1000 mtr.
0.9401 €
2500 mtr.
0.7973 €
*incl. VAT plus shipping costs
**Subject to prior sale
PVC stranded wire, 160107505, Kabeltronik
General wiring technology in the electronics field, as well as measuring line, where high flexibility is demanded.
Technical specifications
| Aderisolationsmaterial | PVC | |
| Außendurchmesser | 2.2 mm | |
| Farbe | grau | |
| Halogenfrei | No | |
| Leiteraufbau | 384 x 0,05 mm | |
| Leiterklasse | Kl.6 = feinstdrähtig | |
| Leitermaterial | Kupfer, blank | |
| Leiterquerschnitt | 0,75 mm² | |
| Nennspannung | 900 V | |
| Prüfspannung | 2.5 kV | |
| Temperaturbereich (bewegt) | -5 °C bis 70 °C | |
| Temperaturbereich (unbewegt) | -30 °C bis 70 °C |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85444995 |
| Originalverpackung | Rolle mit 100 Meter |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
