270102001 | Kabeltronik

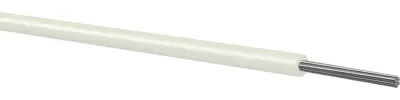

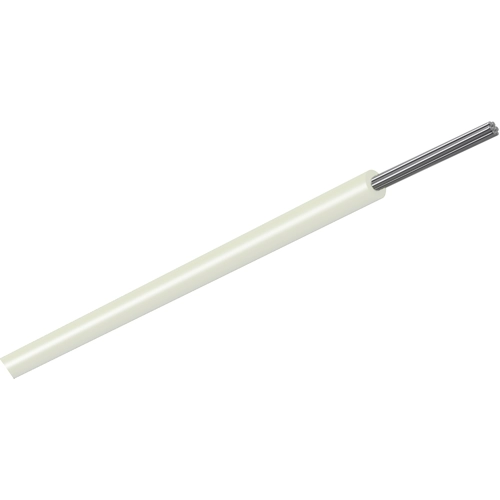

PVC-switching strand, TSR, 0.56 mm², AWG 20/7, white, outer Ø 1.45 mm, 270102001
Unit Price (€ / mtr.)
0.3808 € *
Available: 0 mtr.
Available in 7 Days: 6,430 mtr.
Leadtime: 1 Week **
Total Price:
0.38 € *
Price list
Quantity
Price per unit*
500 mtr.
0.3808 €
1000 mtr.
0.3332 €
*incl. VAT plus shipping costs
**Subject to prior sale
Stranded wire, 270102001, Kabeltronik
Termipoint hook-up wire enables quick, reliable, and solder-free cable connections in electrical and electronic devices, especially in confined spaces. The insulation made of semi-rigid PVC offers high resistance to acids, alkalis, and many oils. Thanks to the stranded construction and durable insulation, this wire is ideal for the use of Insulation Displacement Connectors (IDC).
Technical specifications
| Aderisolationsmaterial | PVC | |
| Außendurchmesser | 1.45 mm | |
| AWG-Leiterquerschnitt | AWG 20/7 | |
| Farbe | weiß | |
| Halogenfrei | No | |
| Leiteraufbau | 7 x 0,32 mm | |
| Leitermaterial | Kupfer, verzinnt | |
| Leiterquerschnitt | 0,56 mm² | |
| Nennspannung | 300 V | |
| Prüfspannung | 2 kV | |
| Temperaturbereich (bewegt) | -10 °C bis 105 °C | |
| Temperaturbereich (unbewegt) | -40 °C bis 105 °C |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85444995 |
| Originalverpackung | Rolle mit 500 Meter |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
