370102408 | Kabeltronik

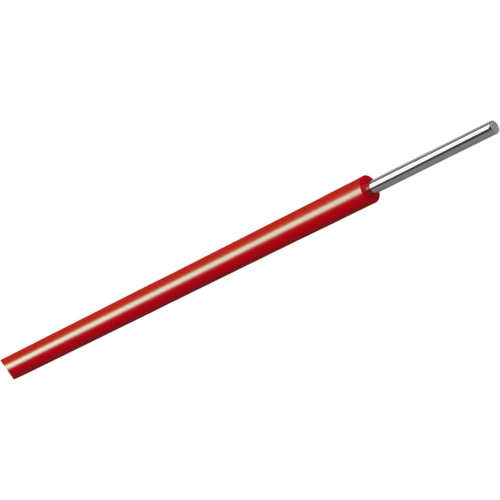

ETFE-wire wrap switching wire, 7Y ETFE, 0.21 mm², AWG 24, red, outer Ø 1.01 mm, 370102408
Unit Price (€ / mtr.)
0.6902 € *
Available: 0 mtr.
Available in 7 Days: 11,590 mtr.
Leadtime: 1 Week **
Total Price:
0.69 € *
Price list
Quantity
Price per unit*
100 mtr.
0.6902 €
500 mtr.
0.6307 €
1000 mtr.
0.5474 €
2500 mtr.
0.4522 €
*incl. VAT plus shipping costs
**Subject to prior sale
ETFE-wire wrap switching wire, 370102408, Kabeltronik
In the fields of aerospace and chemical industry as well as general wiring technology, where high mechanical and thermal characteristics are required. Applicable for the Wire Wrap technology.
Technical specifications
| Aderisolationsmaterial | ETFE | |
| Außendurchmesser | 1.01 mm | |
| AWG-Leiterquerschnitt | AWG 24 | |
| Farbe | rot | |
| Halogenfrei | No | |
| Leitermaterial | Kupfer, verzinnt | |
| Leiterquerschnitt | 0,21 mm² | |
| Nennspannung | 600 V | |
| Prüfspannung | 3 kV | |
| Temperaturbereich (unbewegt) | -65 bis 150 °C |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85444995 |
| Originalverpackung | Karton mit 100 Meter |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
