780260704 | Kabeltronik

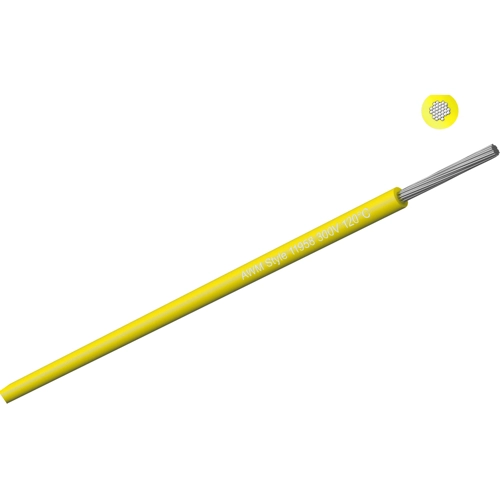

TPE-switching strand, UL-Style 11958, 0.14 mm², AWG 26-7, yellow, outer Ø 1.05 mm, 780260704
Unit Price (€ / mtr.)
0.2939 € *
Available: 0 mtr.
Available in 7 Days: 3,120 mtr.
Leadtime: 1 Week **
Stranded wire, 780260704, Kabeltronik
Stranded wire for internal wiring of electrical devices and control cabinets. Due to extremely thin wall thicknesses and a wide temperature range, it is an excellent alternative to wires with PVC, fluoropolymer or cross-linked insulation. The insulation material has good bending and flexing properties, excellent ageing characteristics and very good chemical resistance. The material is also flame-retardant and free of paint-wetting impairment substances.
Technical specifications
| Aderisolationsmaterial | TPE | |
| Außendurchmesser | 1.05 mm | |
| AWG-Leiterquerschnitt | AWG 26-7 | |
| Farbe | gelb | |
| Halogenfrei | No | |
| Leiteraufbau | 7 x 0,16 mm | |
| Leitermaterial | Kupfer, verzinnt | |
| Leiterquerschnitt | 0,14 mm² | |
| Nennspannung | 300 V | |
| Norm | UL | |
| Prüfspannung | 2.5 kV | |
| Temperaturbereich (unbewegt) | -40 °C bis 120 °C | |
| Biegeradius bewegt | 13.65 mm | |
| Biegeradius unbewegt | 8.4 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85444995 |
| Originalverpackung | Rolle mit 500 Meter |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
