690205100 | Kabeltronik
Hook-up wire, shielded, 2 x 0.5/0.9 mm, gray, 2
Unit Price (€ / mtr.)
1.2733 € *
Available: 150 mtr.
Available in 7 Days: 8,035 mtr.
Leadtime: 1 Week **
Total Price:
1.27 € *
Price list
Quantity
Price per unit*
1 mtr.
1.2733 €
10 mtr.
1.1424 €
50 mtr.
1.0234 €
100 mtr.
0.9401 €
250 mtr.
0.8092 €
*incl. VAT plus shipping costs
**Subject to prior sale

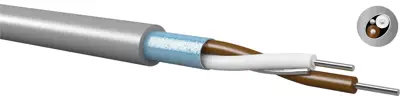

Hook-up wires with foil shielding, type Yv0.
Solid, 2-pole, tinned copper wire. Wire diameter
Technical specifications
| Core insulation material | PVC | |
| Number of cores | 2 | |
| Version | wiring line | |
| Outer diameter | 2.8 mm | |
| Colour | gray | |
| Halogen free | No | |
| Capacity core/core | 100 pF/m | |
| Capacity Core/shield | 170 pF/m | |
| Cable material | copper, tin-plated | |
| Cable cross-section | 0.5 mm² | |
| Material | PVC | |
| Shielding | shielded | |
| Temperature range (active) | -5 °C to 70 °C | |
| Temperature range (unmoved) | -25 °C to 70 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444995 |
| Original Packaging | Ring with 250 meters |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
