830401500 | Kabeltronik

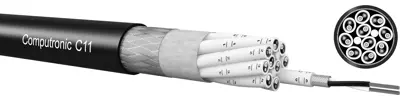

Computronic C11 modulation cable, 2x2x0.15 mm², PUR, black
Unit Price (€ / mtr.)
4.1055 € *
Available: 0 mtr.
Available in 7 Days: 1,149 mtr.
Leadtime: 1 Week **
Modulation cable, 830401500, Kabeltronik
Absolutely high-quality, halogen-free multicore particularly for the professional external application in O.B.-vans. The composition of the used materials and the accurate manufacture processing guarantee the characteristics: Low temperature flexibility to -40°C / absolutely wear resistant / adhesion-free / small outside diameter / flexibly / no halogen / very long life span / torsion-free.
Technical specifications
| Aderisolationsmaterial | PE | |
| Anzahl der Adern | 4 | |
| Ausführung | Modulationskabel | |
| Außendurchmesser | 6.8 mm | |
| Farbe | schwarz | |
| Halogenfrei | Yes | |
| Kapazität Ader/Ader | 80 pF/m | |
| Kapazität Ader/Schirm | 140 pF/m | |
| Leitermaterial | Kupfer, verzinnt | |
| Leiterquerschnitt | 0,15 mm² | |
| Material | PUR | |
| Schirmung | geschirmt | |
| Temperaturbereich (bewegt) | -30 °C bis 80 °C | |
| Temperaturbereich (unbewegt) | -40 °C bis 90 °C |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85444995 |
| Originalverpackung | Ring mit 50 Meter |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
