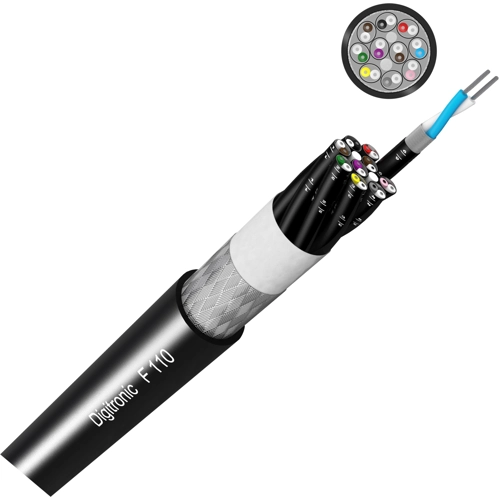

Modulation cable Digitronic F110 8x2x0.15 mm²

Order No.: 96F201
EAN: 4099891959920
MPN:
911601500
Series: Digitronic F110
911601500 Kabeltronik Special Cables
Image may differ
Unit Price (€ / mtr.)
13.4589 € *
Available: 0 mtr.
Available in 7 Days: 2,850 mtr.
Leadtime: 1 Week **
Total Price:
672.94 € *
Price list
Quantity
Price per unit*
50 mtr.
13.4589 €
100 mtr.
12.3284 €
500 mtr.
11.2098 €
*incl. VAT plus shipping costs
**Subject to prior sale

Modulation cable, 911601500, Kabeltronik

The 911601500 is a highly flexible, digital-fit audio-multicore for professional requirements. This type is suitable for mobile inhouse-applications as well as for fixed installations which bear the problem of relatively close bending radius. The core coding and the numbered pair jacket provides a time-saving and easy connection.

Technical specifications
Core insulation material PE
Number of cores 16
Version Modulationskabel
Outer diameter 12 mm
Colour schwarz
Halogen free No
Capacity core/core 57 pF/m
Capacity Core/shield 105 pF/m
Cable material Kupfer, verzinnt
Cable cross-section 0,15 mm²
Material PVC
Shielding geschirmt
Temperature range (active) -5 °C bis 70 °C
Temperature range (unmoved) -20 °C bis 70 °C
Logistics
Country of origin DE
Customs tariff number 85444995
Original Packaging Ring mit 50 Meter
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
