920401400 | Kabeltronik
Multicore cable, 2 x 2 x 0.14 mm², gray, 4
Unit Price (€ / mtr.)
3.8794 € *
Available: 0 mtr.
Available in 7 Days: 1,060 mtr.
Leadtime: 1 Week **

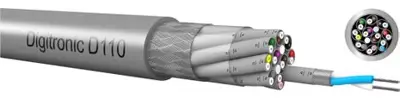

Multicore cables, type Kabeltronik Digitronic D 110.
Flexible, meets highest demands for professional audio signal transmission, also suited for analog technology
Technical specifications
| Version | Multicore-Leitung | |
| Number of cores | 2 | |
| Cable cross-section | 0,14 mm² | |
| AWG cross-section | AWG 26 | |
| Outer diameter | 8 mm | |
| Colour | grau | |
| Shielding | geschirmt | |
| Halogen free | No | |
| Material | PVC | |
| Cable material | Kupfer, verzinnt | |
| Core insulation material | PE | |
| Capacity core/core | 53 pF/m | |
| Capacity Core/shield | 101 pF/m | |
| Temperature range (unmoved) | -20 °C bis 70 °C | |
| Temperature range (active) | -5 °C bis 70 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
