930402200 | Kabeltronik
Modulation cable Digitronic Digiflex 2x2x0,22 mm²
Unit Price (€ / mtr.)
6.5331 € *
Available: 0 mtr.
Available in 7 Days: 2,885 mtr.
Leadtime: 1 Week **
Total Price:
6.53 € *
Price list
Quantity
Price per unit*
50 mtr.
6.5331 €
100 mtr.
5.9976 €
500 mtr.
5.4502 €
*incl. VAT plus shipping costs
**Subject to prior sale
Modulation cable, 930402200, Kabeltronik

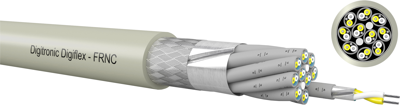

The 930402200 is a modulation cable digitronic digiflex for high-quality fixed installations in the professional segment. Highest interference immunity over the range by combination of 2 x AL/PT-foil and a tinned copper braid shield. Fulfills the DMX-512 specifications. Designed for a quick installation with gumption clamping technology.
Technical specifications
| Aderisolationsmaterial | PE | |
| Anzahl der Adern | 4 | |
| Ausführung | Modulationskabel | |
| Außendurchmesser | 8.5 mm | |
| AWG-Leiterquerschnitt | AWG 24 | |
| Farbe | beige | |
| Halogenfrei | Yes | |
| Kapazität Ader/Ader | 40 pF/m | |
| Kapazität Ader/Schirm | 80 pF/m | |
| Leitermaterial | Kupfer, verzinnt | |
| Leiterquerschnitt | 0,22 mm² | |
| Material | FRNC | |
| Schirmung | geschirmt | |
| Temperaturbereich (bewegt) | -15 °C bis 60 °C | |
| Temperaturbereich (unbewegt) | -40 °C bis 70 °C |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85444995 |
| Originalverpackung | Ring mit 50 Meter |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
