940201400 | Kabeltronik
Digital cables, 2 x 0.14 mm², black, 2, 940201400
Unit Price (€ / mtr.)
1.6660 € *
Available: 0 mtr.
Available in 7 Days: 2,915 mtr.
Leadtime: 1 Week **
Total Price:
1.67 € *
Price list
Quantity
Price per unit*
1 mtr.
1.6660 €
10 mtr.
1.4637 €
50 mtr.
1.3328 €
100 mtr.
1.2019 €
500 mtr.
1.0948 €
*incl. VAT plus shipping costs
**Subject to prior sale

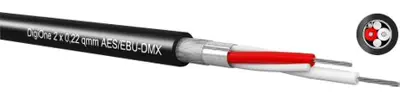

Digital cables, single-pairs with double shielding, type Kabeltronik DigiOne.
High flexibility, conceived for AES/EBU applications (additional version with 0.22 mm² for DMX applications)
Cross-section 0.14 mm².
Technical specifications
| Core insulation material | PE | |
| Number of cores | 2 | |
| Version | digital cable | |
| Outer diameter | 4.4 mm | |
| AWG cross-section | AWG 26 | |
| Colour | black | |
| Halogen free | No | |
| Capacity core/core | 44 pF/m | |
| Capacity Core/shield | 81 pF/m | |
| Cable material | copper, tin-plated | |
| Cable cross-section | 2 x 0.14 mm² | |
| Material | PVC | |
| Shielding | shielded | |
| Temperature range (active) | -5 °C to 70 °C | |
| Temperature range (unmoved) | -25 °C to 70 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444995 |
| Original Packaging | Ring with 100 meters |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
