950201400 | Kabeltronik

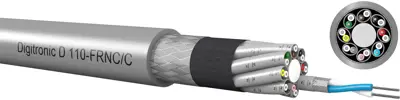

Modulation cable Digitronic D110 FRNC-C1x2x0.14 mm²
Unit Price (€ / mtr.)
4.3316 € *
Available: 0 mtr.
Available in 7 Days: 2,810 mtr.
Leadtime: 1 Week **
Total Price:
216.58 € *
Price list
Quantity
Price per unit*
50 mtr.
4.3316 €
100 mtr.
3.9627 €
500 mtr.
3.6057 €
*incl. VAT plus shipping costs
**Subject to prior sale
Modulation cable, 950201400, Kabeltronik
The 950201400 is a modulation cable digitronic for professional installations in broadcasting stations and studios, where safety regulations concerning the behaviour in case of fire acc. to VDE 0472 part 804 test kind C (IEC 60332-3) have to be observed. Due to the high flexibility the handling resembles that of PVC types.
Technical specifications
| Aderisolationsmaterial | PE | |
| Anzahl der Adern | 2 | |
| Ausführung | Modulationskabel | |
| Außendurchmesser | 4.7 mm | |
| AWG-Leiterquerschnitt | AWG 26 | |
| Farbe | grau | |
| Halogenfrei | Yes | |
| Kapazität Ader/Ader | 55 pF/m | |
| Kapazität Ader/Schirm | 95 pF/m | |
| Leitermaterial | Kupfer, verzinnt | |
| Leiterquerschnitt | 0,14 mm² | |
| Material | FRNC | |
| Schirmung | geschirmt | |
| Temperaturbereich (bewegt) | -5 °C bis 70 °C | |
| Temperaturbereich (unbewegt) | -25 °C bis 70 °C |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85444995 |
| Originalverpackung | Ring mit 50 Meter |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
