TK100SC0504000 | Kager
Temperature indicator, 116 to 138 °C, TK100SC0504000
Order No.: 80B5546
EAN: 4099891471033
MPN:
TK100SC0504000
Unit Price (€ / pc.)
15.7318 € *
Available: 25 pcs.
Next delivery: 25 pcs. on 2025-06-18
Leadtime: 13 Weeks **
Total Price:
15.73 € *
Price list
Quantity
Price per unit*
1 pcs.
15.7318 €
10 pcs.
13.8397 €
50 pcs.
12.8996 €
150 pcs.
12.3284 €
500 pcs.
11.7096 €
*incl. VAT plus shipping costs
**Subject to prior sale

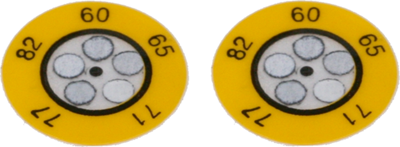

Temperature indicators, type Kager TK.
Suitable for use as irreversible color change temperature indication; Measuring tolerance: to 100 °C ±1.0 °C, above 100 °C ±1.0 %. Contact with oil, water or steam will not influence the function. The color indicators are an ideal solution for applications that are not suited for other thermal color change indication methods such as chalk, paints or tablets. Sticker color yellow.
Measurement points with 5 multiple-range fields, type M5.
Self-adhesive; Size: 15 mm diameter.
Type: U5D, 116–121–127–132–138 °C
Technical specifications
| max. operating temperature | 138 °C | |
| min. operating temperature | 116 °C | |
| Product type | Temperatur-Indikator |
Download
Logistics
| Country of origin | GB |
| Customs tariff number | 48239085 |
Compliance
| RoHS conform | not_relevant |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
