KA1238XA2BMT | KAKU
AC axial fan, 230 V, 120 x 120 x 38 mm, 178 m³/h, 45 dB, ball bearing, KAKU KA1238XA2BMT
Unit Price (€ / pc.)
27.8579 € *
Available: 60 pcs.
Leadtime: 1 Week **
Total Price:
27.86 € *
Price list
Quantity
Price per unit*
1 pcs.
27.8579 €
10 pcs.
24.5140 €
50 pcs.
22.8480 €
150 pcs.
21.8365 €
500 pcs.
20.7298 €
*incl. VAT plus shipping costs
**Subject to prior sale

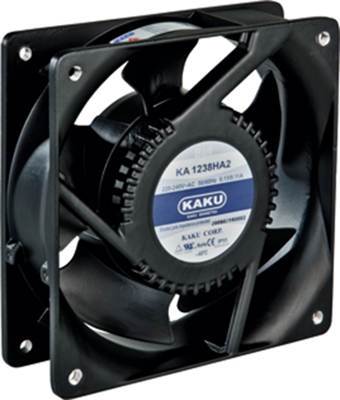

AC Axial fan, KA1238XA2BMT, KAKU
The KA1238XA2BMT AC fan is used for industrial purposes and has a remarkable conveying capacity. Due to the nearly linear air performance characteristic, the fan is well suited for various applications.
Features
- It is permanently electrically protected against blocking and thermal overloads
- Due to the low rotor weight and precision balancing, it has high shock and vibration resistance
- Extremely strong and durable aluminum housing
- Connection 2 blade terminals 2.8x0.5mm
Technical specifications
| Version | AC axial fan | |
| Width | 120 mm | |
| speed | 2500 1/min | |
| Height | 120 mm | |
| Type of bearing | ball bearing | |
| Power consumption | 23 W | |
| Rated voltage | 230 V | |
| Sound pressure level | 45 db | |
| Depth | 38 mm | |
| Volume flow | 178 m³/h |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 84145925 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
