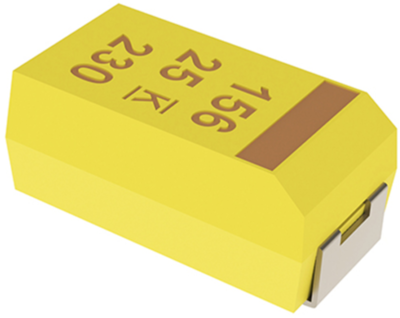

T495C475K025ATE530 | Kemet
Talantum capacitor, SMD, C, 4.7 µF, 25 V, ±10 %, T495C475K025ATE530
Unit Price (€ / pc.)
1.6898 € *
Available: 0 pcs.
Leadtime: On Request **
SMD, Tantalum capacitor, T495C475K025ATE530, Kemet
The low ESR, surge-robust T495 Series is designed for demanding applications that require high surge current and high ripple current capability. This series builds upon the proven capabilities of our industrial grade tantalum chip capacitors to offer several advantages such as low ESR, high ripple current capability, excellent capacitance stability, and improved resistance to high in-rush currents.This series is classified as MSL (Moisture Sensitivity Level) 1.
FEATURES
- 100% steady-state accelerated aging
- High surge current capability
- Extended range values
- High ripple current capability
Technical Data
- Capacity: 4,7 µF
- Nominal voltage: 25 V
- Size: C
- Tolerance: ±10 %

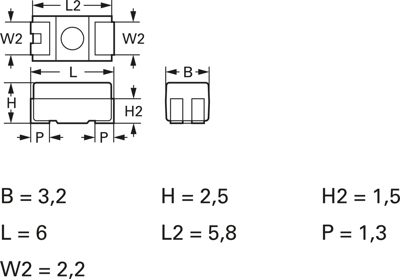

Technical specifications
| Design | SMD | |
| Size | C | |
| ESR (Equivalent Series Resistance) | 530 mΩ | |
| Capacity | 4.7 µF | |
| Length | 6 mm | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -55 °C | |
| Rated voltage (DC) | 25 V | |
| Ripple current | 456 mA | |
| Tolerance | ±10 % |
Download
Logistics
| Country of origin | PT |
| Customs tariff number | 85322100 |
| Original Packaging | Reel with 500 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
