T495D226K025ATE230 | Kemet

Talantum capacitor, SMD, D, 22 µF, 25 V, ±10 %, T495D226K025ATE230

Order No.: 25D1960
EAN: 4099879878816
MPN:
T495D226K025ATE230
B45197A5226K409
Series: T495

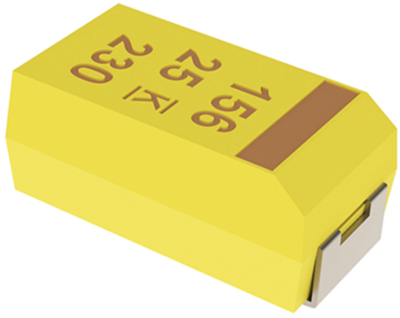

T495D226K025ATE230 Kemet Tantalum Capacitors Image 1
T495D226K025ATE230 Kemet Tantalum Capacitors Image 2
Image may differ
Unit Price (€ / pc.)
1.7850 € *
Available: 441 pcs.
Leadtime: On Request **
Total Price:
1.79 € *
Price list
Quantity
Price per unit*
1 pcs.
1.7850 €
10 pcs.
1.4756 €
100 pcs.
1.2733 €
250 pcs.
1.1543 €
1000 pcs.
1.0591 €
*incl. VAT plus shipping costs
**Subject to prior sale

SMD, Tantalum capacitor, T495D226K025ATE230, Kemet

The low ESR, surge-robust T495 Series is designed for demanding applications that require high surge current and high ripple current capability. This series builds upon the proven capabilities of our industrial grade tantalum chip capacitors to offer several advantages such as low ESR, high ripple current capability, excellent capacitance stability, and improved resistance to high in-rush currents.This series is classified as MSL (Moisture Sensitivity Level) 1.

Features

  • 100% steady-state accelerated aging
  • High surge current capability
  • Extended range values
  • High ripple current capability

Technical Data

  • Capacity: 22 µF
  • Nominal voltage: 25 V

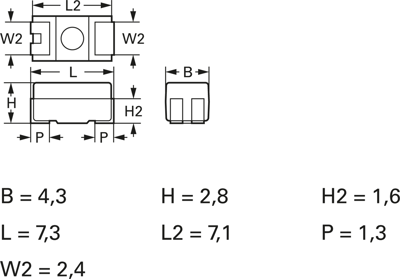

  • Size: D
  • Tolerance: ±10 %
Technical specifications
Bauform SMD
Baugröße D
ESR (Äquivalenter Serienwiderstand) 230 mΩ
Kapazität 22 µF
Länge 7.3 mm
max. Temperatur 125 °C
min. Temperatur -55 °C
Nennspannung (DC) 25 V
Rippelstrom 808 mA
Toleranz ±10 %
Logistics
Ursprungsland PT
Zolltarifnummer 85322100
Originalverpackung Rolle mit 500 Stück
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
