27.19.025 | Kendrion Kuhnke
Miniature cylinder, single-acting, 1.5 to 10 bar, Kd. 20 mm, Hub 25 mm, 27.19.025
Unit Price (€ / pc.)
83.7046 € *
Available: 0 pcs.
Leadtime: On Request **
Miniature cylinders, type Kuhnke 2.
Without magnetic piston; Material cylinder tube and piston rod: corrosion resistant CrNi steel. Cylinder lid: aluminum. Damping disk: elastomer, impact-resistant. Seals: Perbunan. Medium: conditioned compressed air. Stroke tolerance: max. +1.5 mm. Spring force: designed for the cylinder return stroke (not for connected loads). Ambient temperatures: –20 to +70 °C.
Miniature cylinders, single-action, design U, type Kuhnke ..19.
Compliant with DIN ISO 6432 and CETOP RP 52 P; Operating pressure: 1.5 to 10 bar (2.0 to 10 bar at a piston diameter of 8.0 mm). For universal mounting (screw mount on both cylinder lids, hinged).

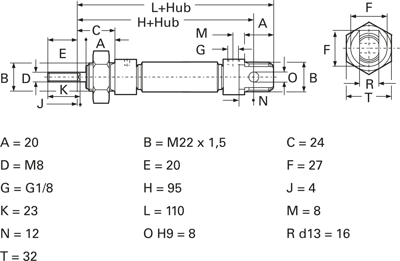

Technical attributes (type, piston diameter (Pd), stroke): 27.19.025, Pd 20, stroke 25 mm
Technical specifications
| Version | miniature cylinder | |
| Type of mounting | screw mounting | |
| Pressure range | 1.5-10 bar | |
| Stroke | 25 mm | |
| Piston diameter (standardized) | 20 mm | |
| Cylinder effect | single-acting |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 84123900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
