50.203 | Kendrion Kuhnke
Compressed air hose, 4 x 1 mm, L 12.5 mm, 12 bar, for tube coupling and nipple, 50.203
Order No.: 90F105
EAN: 4099891493219
MPN:
50.203
Unit Price (€ / mtr.)
3.6771 € *
Available: 0 mtr.
Leadtime: On Request **
Total Price:
3.68 € *
Price list
Quantity
Price per unit*
1 mtr.
3.6771 €
25 mtr.
3.2368 €
100 mtr.
2.9393 €
250 mtr.
2.5823 €
*incl. VAT plus shipping costs
**Subject to prior sale

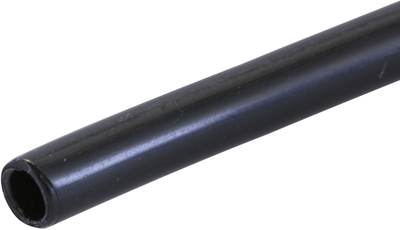

Pneumatic tubing, 4.0 x 1.0, type Kuhnke 50.203.
Outer diameter: 4.0 mm. Wall thickness: 1.0 mm. Material: soft PE. Color: black. Operating pressure at +20/30/40 °C: 16.5/12.2/8.0 bar. Test/burst pressure at +20 °C: 33/60 bar. Bending radius: min. 24 mm.
Type: 50.203, pneumatic tubing
Technical specifications
| Version | 4 x 1 mm | |
| Pressure | 12 bar | |
| Suitable for | tube coupling and nipple | |
| Thread size | M5 | |
| Length | 12.5 mm | |
| Medium | Neutral gases | |
| Accessory Type | compressed air hose |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 39173200 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
