76.410.02.15 | Kendrion Kuhnke

Actuating magnet, 230 VAC, PA 6.6, for valves with nominal size 1/6/8/15 mm and ISO 1/ ISO 2, 76.410.02.15

Order No.: 60G718
EAN: 4099891492113
MPN:
76.410.02.15
Series: 76
Kendrion Kuhnke

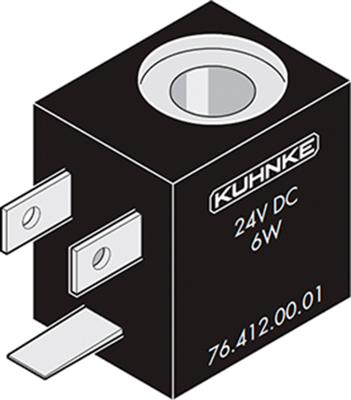

76.410.02.15 Kendrion Kuhnke Fittings and Accessories Image 1

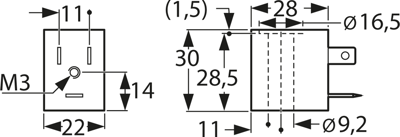

76.410.02.15 Kendrion Kuhnke Fittings and Accessories Image 2
76.410.02.15 Kendrion Kuhnke Fittings and Accessories Image 3
Image may differ
Unit Price (€ / pc.)
27.3105 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
27.31 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
27.3105 €

Actuation magnets, type Kuhnke 76.

For valves with NW 1.0, 6.0, 8.0, 15 mm and ISO 1, ISO 2; Pick-up current: approx. 1.5 x rated current. Material: PA 6.6.

For AC.

Rated coil power: approx. 4.0/3.5 VA. Return power: approx. 1.5 VA. Pick-up/release time: approx. 15 to 20 ms.

Technical attributes (type, rated voltage, resistance, rated current): 76.410.02.15, 230 VAC, 4750 ohm, 18/16 mA

Technical specifications
Version 230 VAC
Suitable for valves with nominal size 1/6/8/15 mm and ISO 1/ ISO 2
Material PA 6.6
Accessory Type actuating magnet
Logistics
Country of origin IT
Customs tariff number 84819000
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
