HT-D55-F-24VDC 100% ED | Kendrion Kuhnke
Holding solenoid, HT-D 55-F-24VDC, 100 % duty cycle, 1000 N, 10 W, 550 g
Unit Price (€ / pc.)
408.9673 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
408.97 € *
Price list
Quantity
Price per unit*
1 pcs.
408.9673 €
5 pcs.
168.1113 €
7 pcs.
111.4673 €
10 pcs.
97.6395 €
*incl. VAT plus shipping costs
**Subject to prior sale

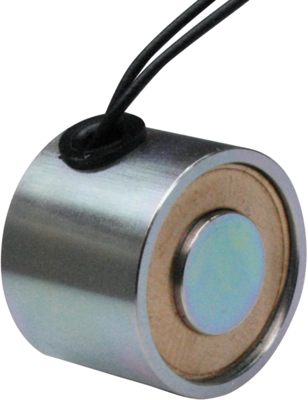

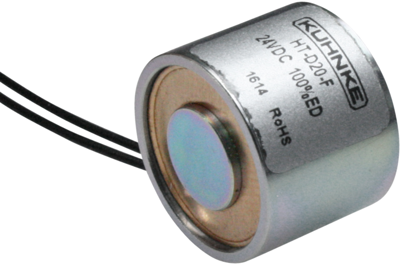

Holding solenoids, type Kuhnke HT-D.
Design: cylindrical. Rated voltage: 24 VDC. Approved relative duty cycle: 100 %. Connection: 200 mm stranded wire. Insulation class: B. Temperature limit: +130 °C. Test voltage: 800 VRMS.
Technical attributes (type, adhesion, rated power, weight): HT-D 55-F-24VDC 100 % duty cycle, 1000 N, 10 W, 550 g
Technical specifications
| Connection | Litzen | |
| diameter | 6 mm | |
| On Period | 100 % ED | |
| Holding force | 1000 N | |
| Power | 10 W | |
| Rated voltage (DC) | 24 V |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85059029 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
