HT-D70-F-24VDC 100% ED | Kendrion Kuhnke

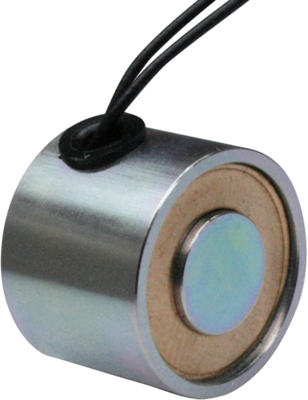

Holding solenoid, HT-D 70-F-24VDC, 100 % duty cycle, 1400 N, 19 W, 800 g
Unit Price (€ / pc.)
144.5136 € *
Available: 22 pcs.
Next delivery: 20 pcs. on 2025-04-02
Leadtime: 19 Weeks **
Total Price:
144.51 € *
Price list
Quantity
Price per unit*
1 pcs.
144.5136 €
3 pcs.
140.1820 €
10 pcs.
135.3625 €
*incl. VAT plus shipping costs
**Subject to prior sale
Holding solenoids, type Kuhnke HT-D.
Design: cylindrical. Rated voltage: 24 VDC. Approved relative duty cycle: 100 %. Connection: 200 mm stranded wire. Insulation class: B. Temperature limit: +130 °C. Test voltage: 800 VRMS.
Technical attributes (type, adhesion, rated power, weight): HT-D 70-F-24VDC 100 % duty cycle, 1400 N, 19 W, 800 g
Technical specifications
| Connection | stranded wires | |

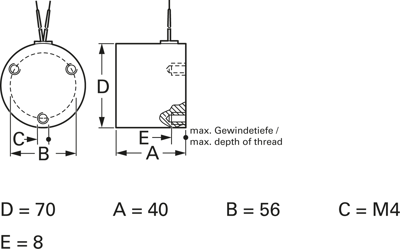

| diameter | 70 mm | |
| On Period | 100 % ED | |
| Holding force | 1400 N | |
| Power | 19 W | |
| Rated voltage (DC) | 24 V |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85059029 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
