H 3406-F-24VDC 100% ED | Kendrion Kuhnke
Linear solenoid, H 3406-F-24VDC, 100 % duty cycle
Unit Price (€ / pc.)
98.9961 € *
Available: 90 pcs.
Leadtime: 18 Weeks **
Total Price:
99.00 € *
Price list
Quantity
Price per unit*
1 pcs.
98.9961 €
5 pcs.
93.0580 €
15 pcs.
89.4880 €
50 pcs.
85.5372 €
150 pcs.
81.9672 €
*incl. VAT plus shipping costs
**Subject to prior sale

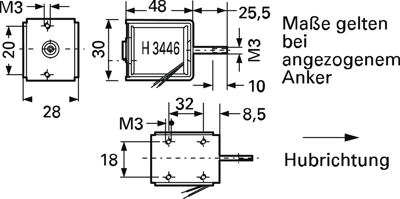

Linear solenoids, type Kuhnke H 34.
Open design with closed yoke and conical face armature, armature bearings in plastic coil former for long useful life; type H 3406: pull solenoid, type H 3446: thrust solenoid. Rated stroke: 10 mm. Rated voltage: 24 VDC. Rated power: 8.0 W. Initial force: 0.6 N. Final force: 6.0 N. Approved relative duty cycle (ED): 100%. Connections: 100 mm stranded wires with free ends. Insulation class: B. Temperature limit: +130 °C. Test voltage: 2500 VRMS. Solenoid weight: approx. 140 g. Armature weight: approx. 32 g.
Type: H 3406-F-24VDC, 100 % duty cycle, linear solenoid
Technical specifications
| Initial force | 0.6 N | |
| Connection | stranded wires | |
| Version | pushing or pulling | |
| On Period | 100 % ED | |
| Final force | 6 N | |
| Stroke | 10 mm | |
| Power | 8 W | |
| Rated voltage (DC) | 24 V | |
| Return spring | No |
Download
Logistics
| Country of origin | RO |
| Customs tariff number | 85059029 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
