H 3446-F-24VDC 100% ED | Kendrion Kuhnke
Linear solenoid, H 3446-F-24VDC, 100 % duty cycle
Unit Price (€ / pc.)
56.3822 € *
Available: 0 pcs.
Leadtime: On Request **

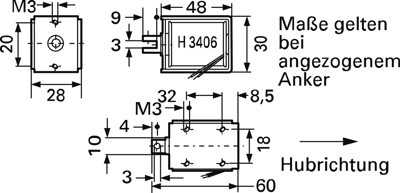

Linear solenoids, type Kuhnke H 34.
Open design with closed yoke and conical face armature, armature bearings in plastic coil former for long useful life; type H 3406: pull solenoid, type H 3446: thrust solenoid. Rated stroke: 10 mm. Rated voltage: 24 VDC. Rated power: 8.0 W. Initial force: 0.6 N. Final force: 6.0 N. Approved relative duty cycle (ED): 100%. Connections: 100 mm stranded wires with free ends. Insulation class: B. Temperature limit: +130 °C. Test voltage: 2500 VRMS. Solenoid weight: approx. 140 g. Armature weight: approx. 32 g.
Type: H 3446-F-24VDC, 100 % duty cycle, linear solenoid
Technical specifications
| Anfangskraft | 0.6 N | |
| Anschluss | Litzen | |
| Ausführung | stoßend oder ziehend | |
| Einschaltdauer | 100 % ED | |
| Endkraft | 6 N | |
| Hub | 10 mm | |
| Leistung | 8 W | |
| Nennspannung (DC) | 24 V | |
| Rückholfeder | No |
Download
Logistics
| Ursprungsland | RO |
| Zolltarifnummer | 85059029 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
