H 4246-F-24VDC 100% ED | Kendrion Kuhnke

Linear solenoids, type Kuhnke H 42.

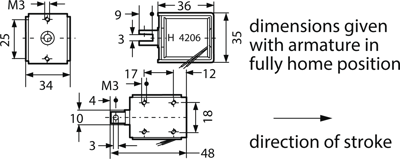

Open design with closed yoke and conical face armature, armature bearings in the plastic coil former for long useful life; type H 4206: pull solenoid, type H 4246: thrust solenoid. Rated stroke: 7.0 mm. Rated voltage: 24 VDC. Rated power: 5.0 W. Initial force: 1.0 N. Final force: 1.0 N. Reliable relative duty cycle (ED): 100%. Connections: 100 mm stranded wires with free ends. Insulation class: E. Temperature limit: +120 °C. Test voltage: 2500 VRMS. Solenoid weight: approx. 145 g. Armature weight: approx. 25 g.

Type: H 4246-F-24VDC, 100 % duty cycle, linear solenoid
