Linear solenoid, H 6206-F-24VDC, 100 % duty cycle
Unit Price (€ / pc.)
310.4234 € *
Available: 0 pcs.
Leadtime: 25 Weeks **
Linear solenoids, type Kuhnke H 62.

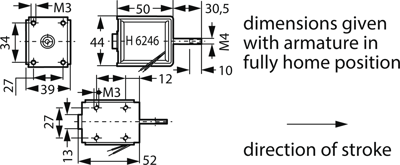

Open design with closed yoke and conical face armature, armature bearings in the plastic coil former for long useful life; type H 6206: pull solenoid, type H 6246: thrust solenoid. Rated stroke: 15 mm. Rated voltage: 24 VDC. Rated power: 11 W. Initial force: 1.1 N. Final force: 18 N. Reliable relative duty cycle (ED): 100%. Connections: 100 mm stranded wires with free ends. Insulation class: E. Temperature limit: +120 °C. Test voltage: 2500 VRMS. Solenoid weight: approx. 320 g. Armature weight: approx. 45 g.
Type: H 6206-F-24VDC, 100 % duty cycle, linear solenoid
Technical specifications
| Initial force | 1.1 N | |
| Connection | stranded wires | |
| Version | pushing or pulling | |
| On Period | 100 % ED | |
| Final force | 18 N | |
| Stroke | 15 mm | |
| Power | 11 W | |
| Rated voltage (DC) | 24 V | |
| Return spring | No |
Download
Logistics
| Country of origin | RO |
| Customs tariff number | 85059029 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
