Linear solenoid, HU 320-F-24VDC, 100 % duty cycle
Unit Price (€ / pc.)
46.8146 € *
Available: 0 pcs.
Leadtime: On Request **

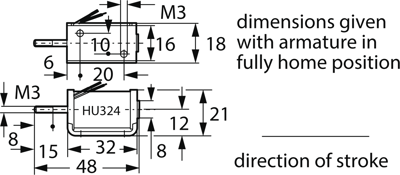

Linear solenoids, type Kuhnke HU 32.
Open design with open yoke and armature bearings in plastic coil former for long useful life; type HU 320: pull solenoid, HU 324: thrust solenoid. Rated stroke: 5.0 mm. Rated voltage: 24 VDC. Rated power: 4.2 W. Initial force: 0.3 N. Final force: 2.4 N. Approved relative duty cycle (ED): 100%. Connections: 100 mm stranded wires with free ends. Insulation class: E. Temperature limit: +120 °C. Test voltage: 2500 VRMS. Solenoid weight: approx. 55 g. Armature weight: approx. 11 g.
Type: HU 320-F-24VDC duty cycle 100%, linear solenoid
Technical specifications
| Initial force | 0.3 N | |
| Connection | stranded wires | |
| Version | pushing or pulling | |
| On Period | 100 % ED | |
| Final force | 2.4 N | |
| Stroke | 5 mm | |
| Power | 4.2 W | |
| Rated voltage (DC) | 24 V |
Download
Logistics
| Country of origin | RO |
| Customs tariff number | 85059029 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
