60.073.80.60 | Kendrion Kuhnke

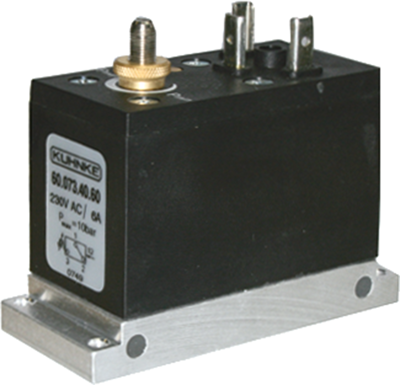

Pressure switch, 60.073.80.60, 6.0 A, 3.0 to 8.0 bar
Order No.: 64G762
EAN: 4099891493271
MPN:
60.073.80.60
Unit Price (€ / pc.)
186.6991 € *
Available: 4 pcs.
Leadtime: On Request **
Total Price:
186.70 € *
Price list
Quantity
Price per unit*
1 pcs.
186.6991 €
3 pcs.
181.0942 €
10 pcs.
174.8824 €
25 pcs.
170.2057 €
*incl. VAT plus shipping costs
**Subject to prior sale

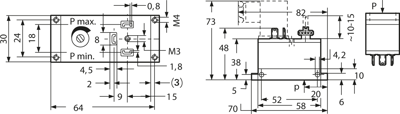

Pneumatic pressure switches, type Kuhnke 60.073.
On a module plate. Adjustable switching pressure range with fixed hysteresis; Operating temperatures: 0 to +60 °C. Housing: plastic. Diaphragm: Viton. Media for operation: non-aggressive. Switching frequency: 5.0 Hz. Switching hysteresis: 0.3 bar. Connections (mechanical): M 5 in the base plate. Electrical connections: appliance inlet Z 802 (tab terminals 6.3 to DIN 46247). Degree of protection: IP 65 with plug connector. Breaking capacity with resistive/inductive load: 12 VDC 6.0/6.0 A, 24 VDC 3.0/2.0 A, 60 VDC 1.0/0.5 A, 110 VDC 0.5/0.2 A, 220 VDC 0.25/0.1 A.
Technical attributes (type, switching current maximum at 220 VAC, pressure switching range): 60.073.80.60, 6.0 A, 3.0 to 8.0 bar
Technical specifications
| Connection | plug contacts | |
| Pressure range | 3-8 bar | |
| Pressure connection | M5 | |
| Switching frequency | 5 Hz | |
| Breaking capacity | 12 VDC/6.0 A |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
