48.200.00.10.00 | Kendrion Kuhnke
Pressure control valve, 48.200.00.10.00, up to 1.0 bar, yes
Order No.: 62G280
EAN: 4099891491888
MPN:
48.200.00.10.00
Unit Price (€ / pc.)
100.1266 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
100.13 € *
Price list
Quantity
Price per unit*
1 pcs.
100.1266 €
10 pcs.
88.0957 €
*incl. VAT plus shipping costs
**Subject to prior sale

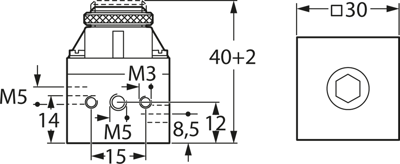

Pressure control valves with M 5 threaded fitting, type Kuhnke 48.200.00.
Pressure range: max. 10 bar. Housing material: nickel-plated brass/plastic. Diaphragm: NBR, fabric-reinforced. Media: non-aggressive. Input: 1 connection size M 5. Outlet: 3 connections size M 5. Ambient temperatures: 0 to +60 °C.
Technical attributes (type, pressure adjustment range, secondary bleeder port yes/no): 48.200.00.10.00, up to 1.0 bar, yes
Technical specifications
| Connection | M5 | |
| Pressure range | 10 bar | |
| Pressure range of setting | bis 1 bar | |
| Medium | nicht aggressive Medien |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 84818059 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
