48.200.00.50.00 | Kendrion Kuhnke
Pressure control valve, 48.200.00.50.00, up to 5.0 bar, yes
Order No.: 62G288
EAN: 4099891491925
MPN:
48.200.00.50.00
Unit Price (€ / pc.)
131.9115 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
131.91 € *
Price list
Quantity
Price per unit*
1 pcs.
131.9115 €
10 pcs.
118.7025 €
25 pcs.
115.4062 €
50 pcs.
112.7763 €
*incl. VAT plus shipping costs
**Subject to prior sale

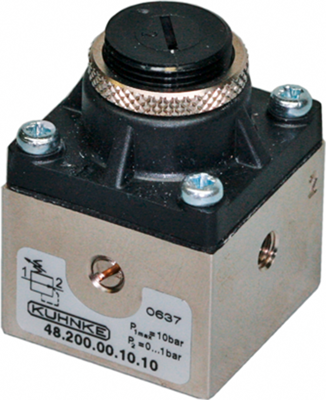

Pressure control valves with M 5 threaded fitting, type Kuhnke 48.200.00.
Pressure range: max. 10 bar. Housing material: nickel-plated brass/plastic. Diaphragm: NBR, fabric-reinforced. Media: non-aggressive. Input: 1 connection size M 5. Outlet: 3 connections size M 5. Ambient temperatures: 0 to +60 °C.
Technical attributes (type, pressure adjustment range, secondary bleeder port yes/no): 48.200.00.50.00, up to 5.0 bar, yes
Technical specifications
| Connection | M5 | |
| Pressure range | 10 bar | |
| Pressure range of setting | bis 5 bar | |
| Medium | nicht aggressive Medien |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 84818099 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
