48.250.00.10.10 | Kendrion Kuhnke
Pressure regulator, 48.250.00.10.10, up to 1.0 bar, no
Order No.: 62G202
EAN: 4099891491741
MPN:
48.250.00.10.10
Unit Price (€ / pc.)
110.3130 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
110.31 € *
Price list
Quantity
Price per unit*
1 pcs.
110.3130 €
10 pcs.
97.0683 €
25 pcs.
93.7720 €
50 pcs.
91.1183 €
*incl. VAT plus shipping costs
**Subject to prior sale

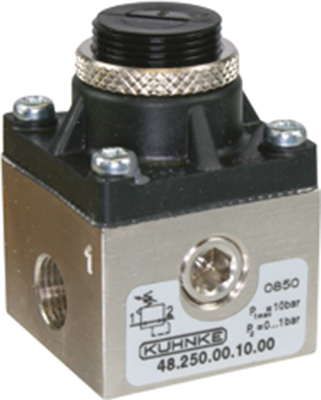

Pressure regulators with G 1/8 fitting, type Kuhnke 48.250.00.
Pressure range: max. 10 bar. Housing material: galvanized brass, nickel-plated/plastic. Diaphragm: NBR, fabric-reinforced. Medium: non-aggressive media. Input: G 1/8 fitting. Output: connection 3 x G 1/8. Ambient temperatures: 0 to +60 °C.
Technical attributes (type, pressure adjustment range, secondary bleeder port yes/no): 48.250.00.10.10, up to 1.0 bar, no
Technical specifications
| Connection | 1 x G 1/8 and 3 x G 1/8 | |
| Pressure range | 10 bar | |
| Pressure range of setting | up to 1 bar | |
| Medium | non-aggressive media |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 84818059 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
