48.250.00.50.00 | Kendrion Kuhnke
Pressure regulator, 48.250.00.50.00, up to 5.0 bar, yes
Order No.: 62G208
EAN: 4099891491758
MPN:
48.250.00.50.00
Unit Price (€ / pc.)
100.0195 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
100.02 € *
Price list
Quantity
Price per unit*
1 pcs.
100.0195 €
10 pcs.
88.0005 €
25 pcs.
85.0017 €
50 pcs.
82.6217 €
*incl. VAT plus shipping costs
**Subject to prior sale

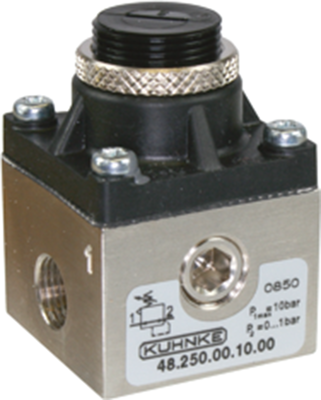

Pressure regulators with G 1/8 fitting, type Kuhnke 48.250.00.
Pressure range: max. 10 bar. Housing material: galvanized brass, nickel-plated/plastic. Diaphragm: NBR, fabric-reinforced. Medium: non-aggressive media. Input: G 1/8 fitting. Output: connection 3 x G 1/8. Ambient temperatures: 0 to +60 °C.
Technical attributes (type, pressure adjustment range, secondary bleeder port yes/no): 48.250.00.50.00, up to 5.0 bar, yes
Technical specifications

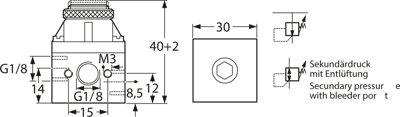

| Connection | 1 x G 1/8 und 3 x G 1/8 | |
| Pressure range | 10 bar | |
| Pressure range of setting | bis 5 bar | |
| Medium | nicht aggressive Medien |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 84818059 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
