50.880.00.40.10 | Kendrion Kuhnke

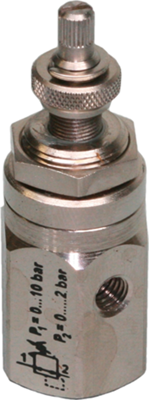

Pressure regulator, 50.880.00.40.10, up to 4.0 bar, no
Order No.: 62G255
EAN: 4099891491857
MPN:
50.880.00.40.10
Unit Price (€ / pc.)
100.1385 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
100.14 € *
Price list
Quantity
Price per unit*
1 pcs.
100.1385 €
10 pcs.
88.1195 €
25 pcs.
85.1207 €
50 pcs.
82.7169 €
*incl. VAT plus shipping costs
**Subject to prior sale
Miniature pressure control valves with M 5 threaded fitting
type: 50.880.00.40.10
pressure range: max. 4 bar
Housing material: nickel-plated galvanized brass
Diaphragm: NBR, fabric-reinforced
Medium: non-aggressive media
Connection type: M 5
Ambient temperatures: 0 to +60 °C, without secondary exhaust system (SE).
Technical specifications
| Connection | M5 | |
| Pressure range | 10 bar | |
| Pressure range of setting | up to 4 bar | |
| Medium | non-aggressive media |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 84818059 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
