D 39-BOR-F-DS9420-24VDC 100% ED | Kendrion Kuhnke
Rotary solenoid, D 39-BOR-F-DS9420-24VDC, 100 % duty cycle
Unit Price (€ / pc.)
253.8389 € *
Available: 6 pcs.
Next delivery: 10 pcs. on 2025-06-17
Leadtime: 25 Weeks **
Total Price:
253.84 € *
Price list
Quantity
Price per unit*
1 pcs.
253.8389 €
3 pcs.
246.2110 €
10 pcs.
237.7501 €
25 pcs.
231.4074 €
50 pcs.
226.3261 €
*incl. VAT plus shipping costs
**Subject to prior sale
Rotary solenoids, type Kuhnke D 3.

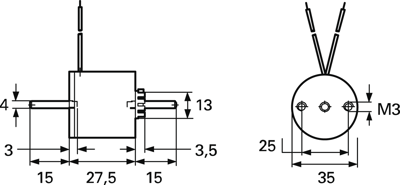

Standard version, with shaft end on both sides, soft adjustable return spring on shaft end for clockwise rotation; Design: cylindrical. Angle of rotation: 45° or 95°. Rated voltage: 24 VDC. Rated current: 250 mA. Rated resistance: 97.2 ohm. Approved relative duty cycle: 100%. Connection: 200 mm stranded wire with free ends. Time constant: approx. 2.5 to 12 ms. Test voltage: 2500 VRMS. Insulation class: B. Temperature limit: +130 °C. Weight: approx. 150 g.
Technical attributes (type, angle of rotation (AR), initial torque (IT), final torque (FT)): D 39-BOR-F-DS9420-24VDC, AR 95 °, IT 0.18, FT 1.20 N/cm
Technical specifications
| Initial Torque | 0.18 Ncm | |
| Connection | stranded wire | |
| Rotation angle | 95° | |
| On Period | 100% | |
| Final torque | 1.2 Ncm | |
| Power | 6 W | |
| Rated voltage (DC) | 24 V | |
| Return spring | Yes | |
| Time constant | 12 ms |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85059029 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
