D 54-BOR-F-24VDC 100% ED | Kendrion Kuhnke

Rotary solenoid, D 54-BOR-F-24VDC, 100 % duty cycle

Order No.: 27G188
EAN: 4099889489903
MPN:
D 54-BOR-F-24VDC 100% ED
Series: D5

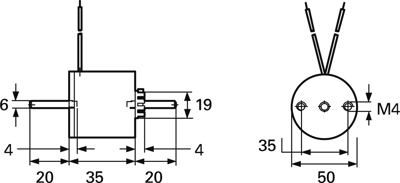

D 54-BOR-F-24VDC 100% ED Kendrion Kuhnke Rotary Solenoids Image 1

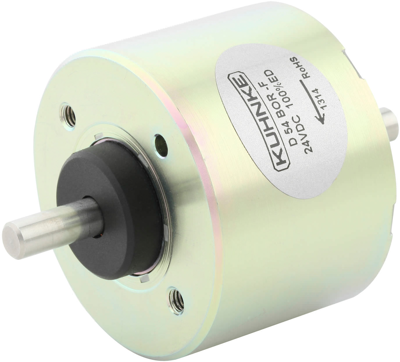

D 54-BOR-F-24VDC 100% ED Kendrion Kuhnke Rotary Solenoids Image 2
Image may differ
Unit Price (€ / pc.)
256.8496 € *
Available: 12 pcs.
Next delivery: 6 pcs. on 2025-08-15
Leadtime: 24 Weeks **
Total Price:
256.85 € *
Price list
Quantity
Price per unit*
1 pcs.
256.8496 €
3 pcs.
249.1503 €
10 pcs.
240.5823 €
25 pcs.
234.1563 €
50 pcs.
229.0274 €
*incl. VAT plus shipping costs
**Subject to prior sale

Rotary solenoids, Kuhnke D 5.

Standard version with shaft end on both sides, clockwise rotation, with return spring on the shaft end (type D 59.. with soft adjustable return spring)

Design: cylindrical

Angle of rotation: 45° or 95°

Rated voltage: 24 VDC

Rated current: 420 mA

Rated resistance: 57.4 ohm

Approved relative duty cycle: 100%

Connection: 200 mm stranded wire with free ends

Time constant: approx. 8.0 to 25 ms

Test voltage: 2500 VRMS

Insulation class: B

Temperature limit: +130 °C

Weight: approx. 380 g.

Technical specifications
Rated voltage (DC) 24 V
On Period 100%
Power 10.1 W
Rotation angle 45°
Initial Torque 3,6 Ncm
Final torque 9,3 Ncm
Time constant 25 ms
Connection Litze
Return spring Yes
Logistics
Country of origin DE
Customs tariff number 85059029
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
